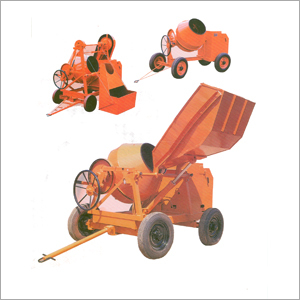

Concrete Mixer

Concrete Mixer
Concrete Mixer
Product Code : 01
Product Description

Since our inception, we have been engaged in supplying high performing Concrete Mixer that is widely used in construction industry. Specially designed for thorough mixing of the ingredients with the other coarse and granular materials in the powdered form, the offered mixer is made with easy unloading mechanism. The provided mixer is manufactured in compliance with set quality standards using supreme quality stainless steel under the observation of our experts. Available in various specifications to meet the diverse needs of our clients, this Concrete Mixer can be purchased from us at market-competitive prices.

Features:

  • Rugged construction

  • Easy to operate

  • Compact design

  • High mechanical strength

Concrete Mixer With & Without Hopper

Technical Specifications:

Particulars
Without Hopper
With Hopper
With Hydraulic Hopper
Capacity



Unmixed
10cft (280lts)
10cft (280lts) 10cft (280lts)
Mixed
7cft (200lts)
7cft (200lts) 7cft (200lts)
Dimensions



Length without towbar
96"(2.44m)
105"(2.67m)
99"(2.52m)
Height
70"(1.78m)
92"(2.34m)
78"(2.10m)
Width
45"(1.14m)
90"(2.29m)
108"(2.74m)
Powered by
6 HP Diesel engine / 3 HP Electric Motor
6 HP Diesel engine / 5 HP Electric Motor 6 HP Diesel engine / 5 HP Electric Motor
Chassis
All steel construction
All steel construction All steel construction
Drum Speed
20 RPM
20 RPM 20 RPM
Wheels
Tyre / Cast iron / Mild Steel
Tyre / Cast iron / Mild Steel Tyre / Cast iron / Mild Steel
Weight
600 kgs Approx (with prime mover)
1000 kgs Approx (with prime mover) 900 kgs Approx (with prime mover)

Maintenance of Hydraulic Hopper:  Easy operation, Less Labour, No Chain & Clutch required, Total Control with hydraulic system.

Salient Features
  • Karthik construction machinery are designed and engineered for optimum stability and durability as required by the construction industry. The machines are perfectly aligned, so as to increase life of the components. We have a deep commitment towards quality. The machine is inspected in 3 stages before despatch, one is the inspection of raw material, second is during assembly and the third after assembly. Each machine is tested on load before despatch.
  • We give one year warranty against any manufacturing defects. Our after sales service is among the best in the industry. Any of our existing customers will vouch for our prompt and efficient service. Spares easily available at our offices and with our dealers.
  • With our experience and expertise we are able to design and manufacture machines for special applications.
